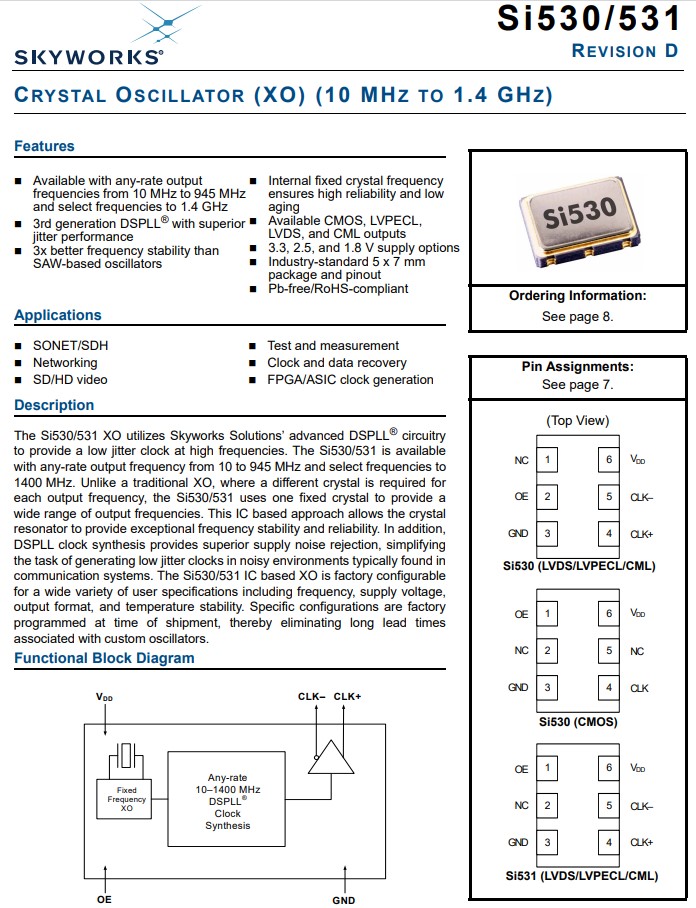

Silicon晶振系列Si531 XO采用Skyworks Solutions的先進DSPLL®電路，以在高頻下提供低抖動時鐘。Si531貼片晶振具有從10MHz到945MHz的任意速率輸出頻率，并選擇頻率1400MHz。與傳統XO不同，傳統XO需要不同的晶體，每個輸出頻率，Si531石英晶振使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體，提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供卓越的電源噪聲抑制，簡化了在通信系統中常見的噪聲環境中產生低抖動時鐘的任務。Si531 IC石英晶體振蕩器在工廠可配置用于各種用戶規格，包括頻率、電源電壓、輸出格式和溫度穩定性。特定配置在發貨時進行工廠編程，從而消除了與定制振蕩器相關的長交付周期。531AC156M250DG應用于時鐘和數據恢復晶振

原廠代碼	品牌	型號	頻率	電壓	頻率穩定度
531BB125M000DG	Silicon晶振	Si531	125MHz	3.3V	±20ppm
531FB200M000DG	Silicon晶振	Si531	200MHz	2.5V	±20ppm
531FC250M000DG	Silicon晶振	Si531	250MHz	2.5V	±7ppm
531FB125M000DG	Silicon晶振	Si531	125MHz	2.5V	±20ppm
531BC200M000DG	Silicon晶振	Si531	200MHz	3.3V	±7ppm
531BC250M000DG	Silicon晶振	Si531	250MHz	3.3V	±7ppm
531BC125M000DG	Silicon晶振	Si531	125MHz	3.3V	±7ppm
531FB106M250DG	Silicon晶振	Si531	106.25MHz	2.5V	±20ppm
531AC156M250DG	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm
531AC200M000DG	Silicon晶振	Si531	200MHz	3.3V	±7ppm
531BC148M500DG	美國進口晶振	Si531	148.5MHz	3.3V	±7ppm
531BC156M250DG	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm
531AC125M000DG	Silicon晶振	Si531	125MHz	3.3V	±7ppm
531FC125M000DG	Silicon晶振	Si531	125MHz	2.5V	±7ppm
531FC156M250DG	Silicon晶振	Si531	156.25MHz	2.5V	±7ppm
531FC148M500DG	Silicon晶振	Si531	148.5MHz	2.5V	±7ppm
531AC155M520DG	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm
531BC155M520DG	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm
531FC200M000DG	Silicon晶振	Si531	200MHz	2.5V	±7ppm
531AC622M080DG	Silicon晶振	Si531	622.08MHz	3.3V	±7ppm
531AC312M500DG	Silicon晶振	Si531	312.5MHz	3.3V	±7ppm
531AC106M250DG	Silicon晶振	Si531	106.25MHz	3.3V	±7ppm
531EC106M250DG	Silicon晶振	Si531	106.25MHz	2.5V	±7ppm
531BC187M500DG	Silicon晶振	Si531	187.5MHz	3.3V	±7ppm
531EC155M520DG	Silicon晶振	Si531	155.52MHz	2.5V	±7ppm
531AC187M500DG	Silicon晶振	Si531	187.5MHz	3.3V	±7ppm
531EC187M500DG	Silicon晶振	Si531	187.5MHz	2.5V	±7ppm
531EC148M500DG	Silicon晶振	Si531	148.5MHz	2.5V	±7ppm
531FC155M520DG	Silicon晶振	Si531	155.52MHz	2.5V	±7ppm
531EC156M250DG	Silicon晶振	Si531	156.25MHz	2.5V	±7ppm

Si531 XO支持多種選項，包括頻率、溫度穩定性、輸出格式和VDD。裝運時，Si531有源晶振中已編程設定了具體的器件配置。配置可以是使用下面的零件號配置表指定。Skyworks解決方案提供了一個基于網絡瀏覽器的零件號配置實用程序來簡化此過程。Si531 XO系列采用符合RoHS標準的工業標準6- 襯墊，小體積7.0x5.0mm包裝。Si531系列支持LVPECL、LVDS和的備用OE引腳排列(引腳#1) CML輸出格式。531AC156M250DG應用于時鐘和數據恢復晶振

531AC311M040DG	Silicon晶振	Si531	311.04MHz	3.3V	±7ppm
531BC311M040DG	Silicon晶振	Si531	311.04MHz	3.3V	±7ppm
531EC311M040DG	Silicon晶振	Si531	311.04MHz	2.5V	±7ppm
531EC622M080DG	Silicon晶振	Si531	622.08MHz	2.5V	±7ppm
531FC622M080DG	Silicon晶振	Si531	622.08MHz	2.5V	±7ppm
531FC311M040DG	Silicon晶振	Si531	311.04MHz	2.5V	±7ppm
531BC622M080DG	Silicon晶振	Si531	622.08MHz	3.3V	±7ppm
531FC312M500DG	Silicon晶振	Si531	312.5MHz	2.5V	±7ppm
531EC312M500DG	Silicon晶振	Si531	312.5MHz	2.5V	±7ppm
531AC250M000DG	Silicon晶振	Si531	250MHz	3.3V	±7ppm
531EC250M000DG	Silicon晶振	Si531	250MHz	2.5V	±7ppm
531BC312M500DG	SMD晶振	Si531	312.5MHz	3.3V	±7ppm
531AA156M250DG	Silicon晶振	Si531	156.25MHz	3.3V	±50ppm
531BC106M250DG	Silicon晶振	Si531	106.25MHz	3.3V	±7ppm
531EC125M000DG	Silicon晶振	Si531	125MHz	2.5V	±7ppm
531FC106M250DG	Silicon晶振	Si531	106.25MHz	2.5V	±7ppm
531FC187M500DG	Silicon晶振	Si531	187.5MHz	2.5V	±7ppm
531EC200M000DG	Silicon晶振	Si531	200MHz	2.5V	±7ppm
531AC148M500DG	Silicon晶振	Si531	148.5MHz	3.3V	±7ppm
531AC125M000DGR	Silicon晶振	Si531	125MHz	3.3V	±7ppm
531BC125M000DGR	Silicon晶振	Si531	125MHz	3.3V	±7ppm
531EC125M000DGR	Silicon晶振	Si531	125MHz	2.5V	±7ppm
531FC125M000DGR	Silicon晶振	Si531	125MHz	2.5V	±7ppm
531AC106M250DGR	Silicon晶振	Si531	106.25MHz	3.3V	±7ppm
531BC106M250DGR	Silicon晶振	Si531	106.25MHz	3.3V	±7ppm
531EC106M250DGR	Silicon晶振	Si531	106.25MHz	2.5V	±7ppm
531FC106M250DGR	Silicon晶振	Si531	106.25MHz	2.5V	±7ppm
531FC25M0000DGR	Silicon晶振	Si531	25MHz	2.5V	±7ppm
531AC155M520DGR	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm
531AC156M250DGR	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm
531BC155M520DGR	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm
531BC156M250DGR	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm
531EC155M520DGR	Silicon晶振	Si531	155.52MHz	2.5V	±7ppm
531EC156M250DGR	Silicon晶振	Si531	156.25MHz	2.5V	±7ppm
531FC155M520DGR	Silicon晶振	Si531	155.52MHz	2.5V	±7ppm
531FC156M250DGR	Silicon晶振	Si531	156.25MHz	2.5V	±7ppm
531AC187M500DGR	Silicon晶振	Si531	187.5MHz	3.3V	±7ppm
531BC187M500DGR	Silicon晶振	Si531	187.5MHz	3.3V	±7ppm
531EC187M500DGR	Silicon晶振	Si531	187.5MHz	2.5V	±7ppm
531FC187M500DGR	Silicon晶振	Si531	187.5MHz	2.5V	±7ppm
531AC148M500DGR	Silicon晶振	Si531	148.5MHz	3.3V	±7ppm
531AC200M000DGR	Silicon晶振	Si531	200MHz	3.3V	±7ppm
531BC148M500DGR	Silicon晶振	Si531	148.5MHz	3.3V	±7ppm
531BC200M000DGR	Silicon晶振	Si531	200MHz	3.3V	±7ppm
531EC148M500DGR	Silicon晶振	Si531	148.5MHz	2.5V	±7ppm
531EC200M000DGR	Silicon晶振	Si531	200MHz	2.5V	±7ppm
531FC148M500DGR	Silicon晶振	Si531	148.5MHz	2.5V	±7ppm
531FC200M000DGR	Silicon晶振	Si531	200MHz	2.5V	±7ppm
531AC312M500DGR	Silicon晶振	Si531	312.5MHz	3.3V	±7ppm
531BC312M500DGR	Silicon晶振	Si531	312.5MHz	3.3V	±7ppm
531EC312M500DGR	Silicon晶振	Si531	312.5MHz	2.5V	±7ppm
531FC312M500DGR	Silicon晶振	Si531	312.5MHz	2.5V	±7ppm
531AC250M000DGR	Silicon晶振	Si531	250MHz	3.3V	±7ppm
531AC311M040DGR	Silicon晶振	Si531	311.04MHz	3.3V	±7ppm
531AC622M080DGR	Silicon晶振	Si531	622.08MHz	3.3V	±7ppm

531AC156M250DG應用于時鐘和數據恢復晶振
產品特點：
可用于任何速率的輸出頻率從10MHz到945MHz，并選擇1.4GHz的頻率
第三代DSPLL，內置高級抖動性能
頻率穩定性比高3倍基于SAW的振蕩器
內部固定晶體頻率確保高可靠性和低老化
可用CMOS、LVPECL、 LVDS和CML輸出差分晶振
3.3、2.5和1.8V電源選項
行業標準5x7毫米封裝和引腳排列
無鉛/符合RoHS標準
應用于：聲納/SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，FPGA/AASIC時鐘生成
